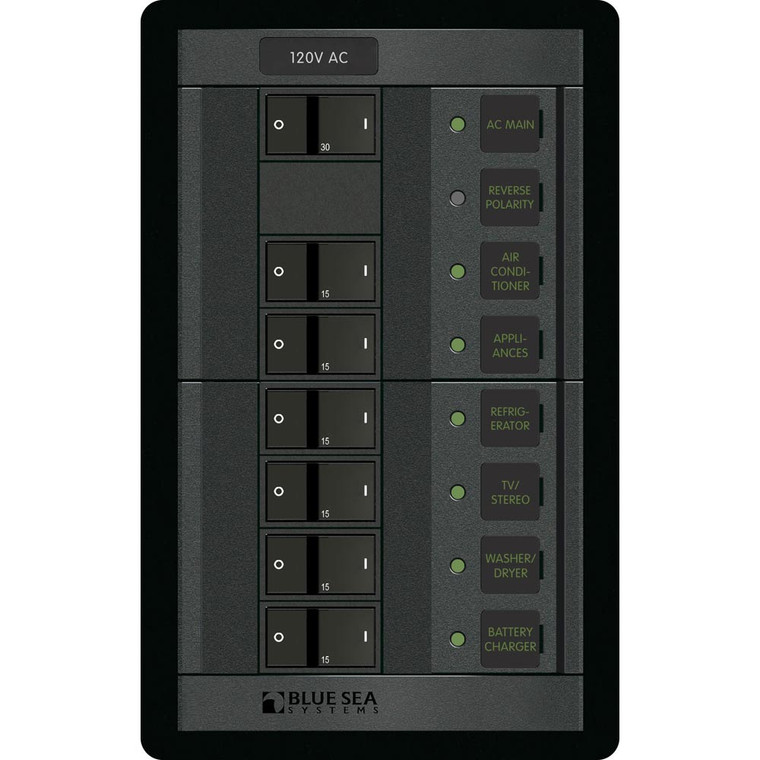

Blue Sea 1202 120V AC Main + 6 Positions - Vertical [1202]

Blue Sea 1202 120V AC Main + 6 Positions - Vertical [1202]

Blue Sea Systems
SKU:
MCS-57237
|
UPC:
632085012021
$506.95
$694.99
(You save $188.04 )
(No reviews yet)
Width:
6.00 (in)
Height:
6.00 (in)
Depth:
12.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

120 Volt AC Main + 6 Position - Vertical

Features:

  • All circuit label positions are backlit
  • "ON" indicating LEDs installed in all circuit positions
  • Includes 4206-Square Format Label Set


Specifications:
  • Positions: 6
  • Nominal Voltage: 120V AC
  • Maximum Amperage*: 100A
  • Height: 7.75" (196.85mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.00" (76.2mm)
  • Weight: 2.70lb (1.22kg)


Includes:
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 6"H x 6"W x 12"L WT: 2.6 lbs
  • UPC: 632085012021

Quick Guide (pdf)
Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
1202
