Barton Marine Ratchet Block - 55mm [90500]

Barton Marine Ratchet Block - 55mm [90500]

Barton Marine
SKU:
MCS-99724
|
UPC:
5035088085286
$123.95
$131.37
(You save $7.42 )
(No reviews yet)
Width:
3.00 (in)
Height:
2.00 (in)
Depth:
6.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

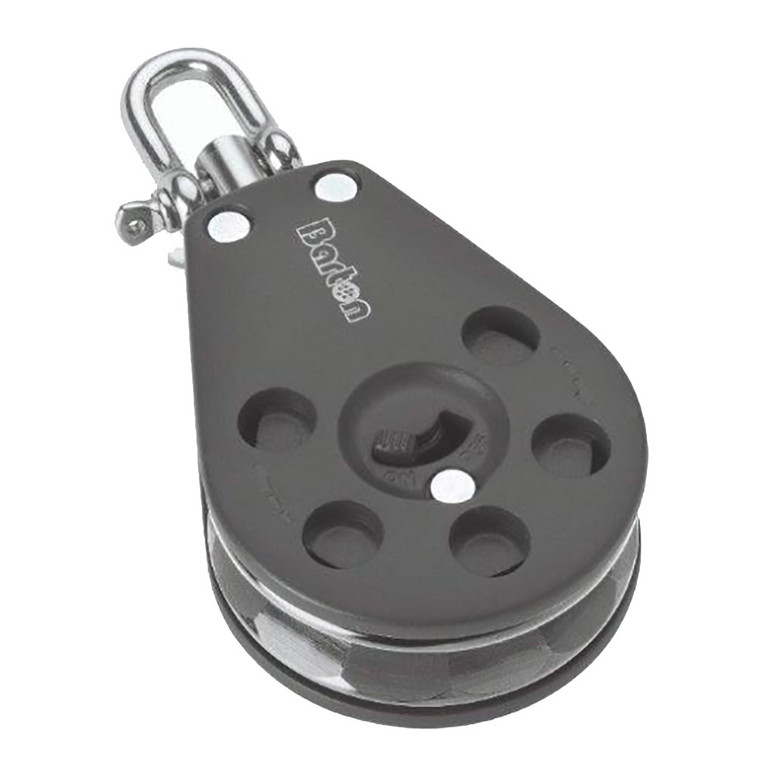

Ratchet Block - 55mm

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.

Combining high-performance engineering and contemporary design, the 2-3/16" (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silver

Technical Specifications:

  • Safe Working Load - 661 lb (300 kg)
  • Breaking Load - 2,646 lb (1,200 kg)
  • Maximum Rope Diameter - 3/8" (10 mm)
  • Weight - 4.8 oz (135 grams)

*Sold as an Individual

Warranty
Manufacturer's warranty: this item is covered by Barton Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
90500
