Attwood Automatic Float Switch w\/Cover - 12V & 24V [4201-7]

Attwood Automatic Float Switch w/Cover - 12V & 24V [4201-7]

Attwood Marine
SKU:
MCS-43915
|
UPC:
022697420176
$35.95
$44.02
(You save $8.07 )
(No reviews yet)
Width:
6.00 (in)
Height:
2.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

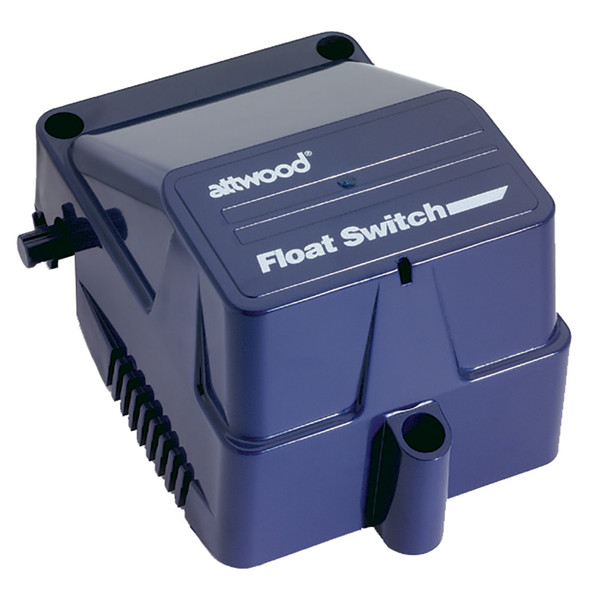

Float Switch w/Cover
Part #: 4201-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24" angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

Float switch installs independently or directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

  • 36" Wire
  • 12V and 24V
  • CE Rated
  • Includes Cover

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Volts: 12/24v
  • Type: Switches
  • Box Dimensions: 2"H x 6"W x 9"L WT: 0.5 lbs
  • UPC: 022697420176

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Attwood Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
4201-7
