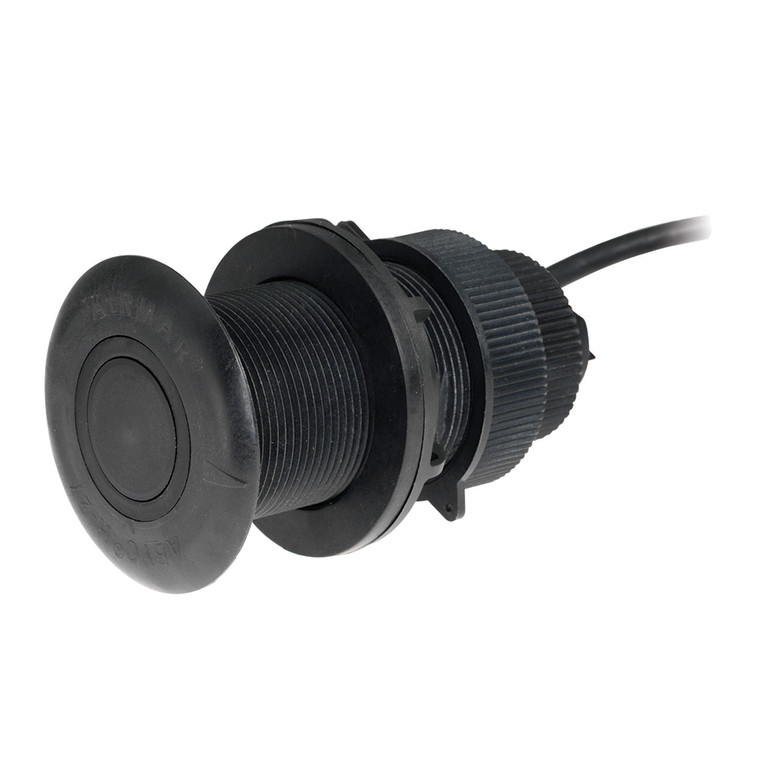

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]

Airmar
SKU:
MCS-70692
|
UPC:
801769002485
$399.99
$439.99
(You save $40.00 )
(No reviews yet)
Width:
8.00 (in)
Height:
4.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°

  • Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
  • Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
  • Connector: 5-Pin NMEA 2000

Features:

  • Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
  • Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
  • Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
  • Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
  • Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
  • Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
  • 235 kHz frequency prevents mutual interference with other echo sounders on vessel
  • Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

  • Mount: Thru-hull
  • Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
  • Housing Material: Plastic
  • Connector: 5-pin NMEA 2000®
  • Cable Length: 20 ft.
  • Frequency: 235 kHz
  • Cone: 12°
  • Power: 100 Watts RMS
  • Depth Sensor Range: 1.6 - 594 ft.
  • Acoustic Window Material: Urethane
  • Compatible Hull Materials: Fiberglass or metal
  • Hole Diameter for Installation: 2"
  • Dimensions: 4.92" H x 2.94" OD
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Warranty
Manufacturer's warranty: this item is covered by Airmar's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
DT820PV-235-N2
