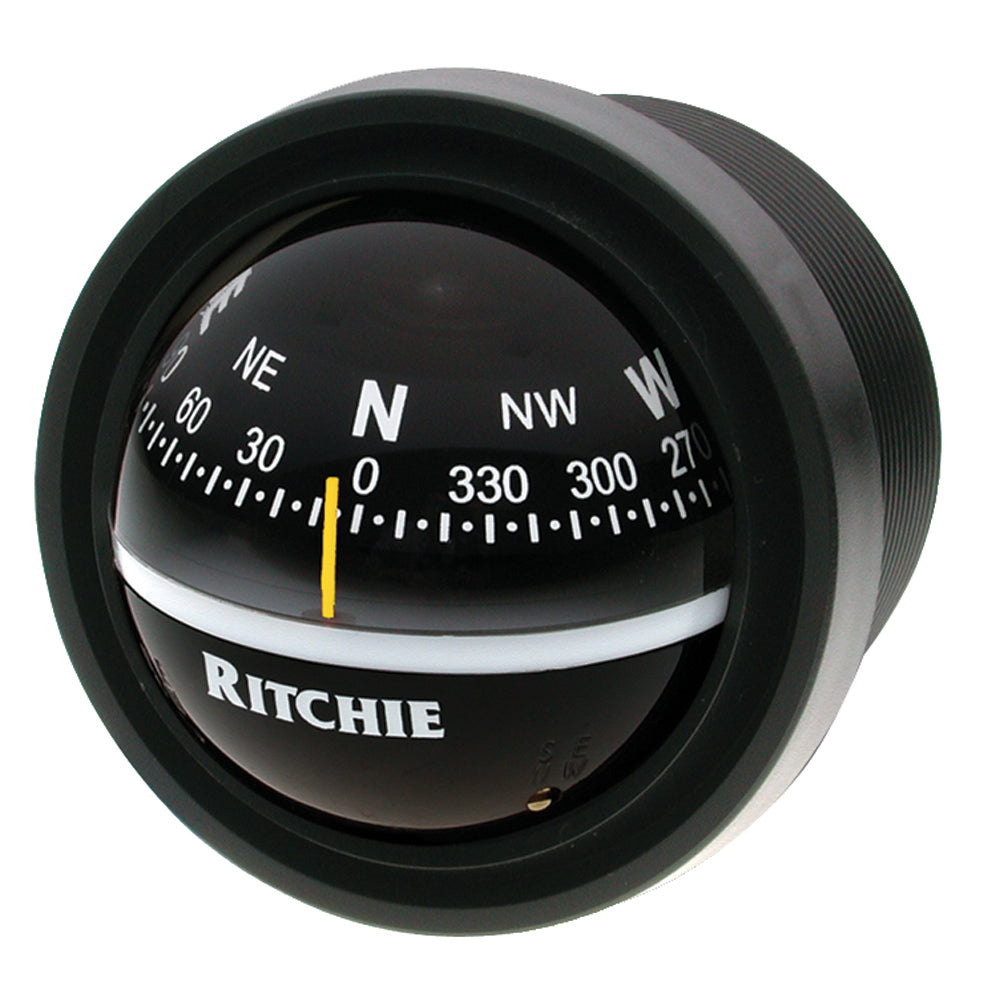

Ritchie V-57.2 Explorer Compass - Dash Mount - Black [V-57.2]

Explorer Compass

Explorer Compass Features

• 2-3/4" Easy to Read Direct Reading Dial

• Easily Installed, Fits 3" Instrument Hole

• Bezels Styled to Match Popular Gauge Packages

• Viewing is adjustable to 30 degrees

• Choice of Traditional Black or Designer White Colors

• Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

• Exclusive Built-in NiteVu Lighting

• Built-in Compensators to Easily Adjust for Deviation

• Hi-Temperature Construction

• 100% Repairable

• Exclusive 5-Year Warranty

Approx. Shipping Weight: 1lb (454g)

Notes:
All compasses come standard with 12V lighting. 24V lighting option is available.

Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

Specifications:

• Read: Front
• Mounting Style: Dash
• Backlight: Yes
• Lubber Lines: Yes
• Box Dimensions: 5"H x 6"W x 6"L WT: 0.8 lbs
• UPC: 010342160614

Quick Guide (pdf)
Owner's Manual (pdf)
